High Speed Plastic Film Slitting Machine With Operating Video

  • 1 - 1 Sets
    $10,200.00
  • >=2 Sets
    $9,800.00
Model Number:
FQ-E-Series
Power:
4.5-7.5kw
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Slitting Rewinder
Computerized:
yes
Place of Origin:
Zhejiang, China
Brand Name:
Berlan
Voltage:
220V/380V
Dimension(L*W*H):
3200x1700x1100mm
Weight:
1800-2800kgs
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Product name:
High Speed Plastic Film Slitting Machine
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Machine will cover with PE water proof film to prevent moisture from the ocean.
Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
Port
Ningbo ,Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

    FQ-E Slitter with good machine structure,low noise,easy to operating & maintain. It equipped with quality performance tension controller,Rewinding meter counter ,Film slit by this machine have very smooth edge.

Product Name
FQ-E SERIES SLITTING REWINDING MACHINE
Usage
Suit For Slitting&Rewinding Thin Plastic Film Such As BOPP,OPP,CPP,PE,LDPE,LLDPE,HDPE,PZG,PET,EVA,PVC,BOPS,PVDC,Optical Thin Film Etc...

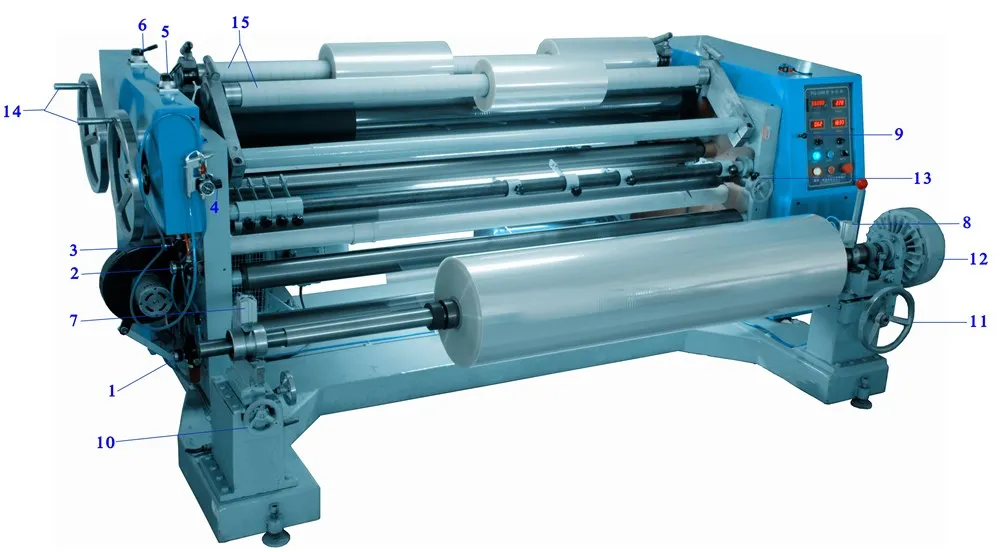

1.Filtration Pressure Regulating Valve                     2.First Rewinder Pressure Regulating Valve         3.Second Rewinder Pressure Regulating Valve

3.Second Rewinder Pressure Regulating Valve      4.Air Expanding Shaft Gas Charging Valve           5.First  Rewinder Unload Button

6.Second Rewinder Unload Button                           7.Unwinder Right Air Cylinder                                  8.Unwinder Left Air Cylinder

9.Button Of (7&8 Right Left)Cylinder                      10.Material Lengthways Adjust Wheel                  11.Material Crosswise Adjust Wheel

12.Magnetic Powder Brake        13.Slitting Blade Worm Wheel        14.Rewinding Shaft Wheel       15.Air Expanding Rewinding Shaft

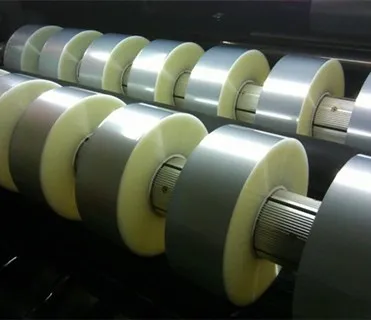

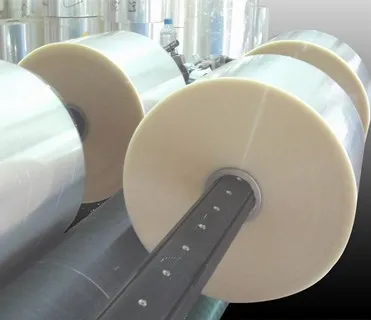

SLITTING EFFECT

Feature & Parameter

1.This Machine Is Center Friction Rewinding Type .

Machine Frame Made Of 4CM Thickness Steel Plate. Make sure machine won't shake in high speed running.

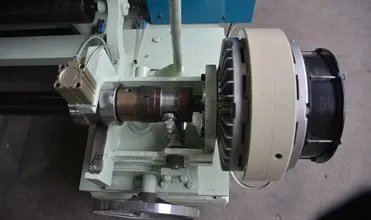

2.Unwinding Automatic Tension Controller

Unwinding device equipped with auto tension controller and adopt 20Kgs magnetic powder brake ,can offer more higher tension .(We offer high quality magnetic powder controller for you ,when in long time and high speed running ,it won't be too hot to stop work)

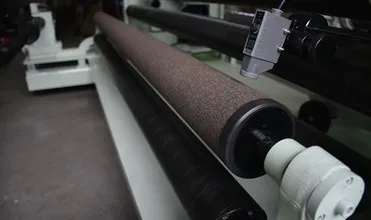

3.Deviation Correct

Unwinder with photocell eye and deviation correct motor to correct unwinding deviation.

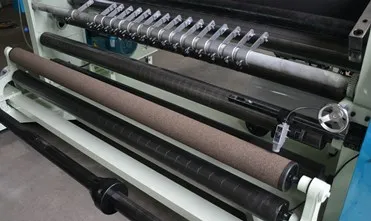

4.Guidding Roller

Rubber roller and steel coil roller. Diameter:120mm.(Large Diameter roller can offer good friction for material ,make sure material surface smooth & flat)
There will total have 8pcs guide roller (6pcs are AL Guide Roller & 2pcs are Rubber Surface Roller) AL guide roller through "Chrome Plating" harden surface treatment.

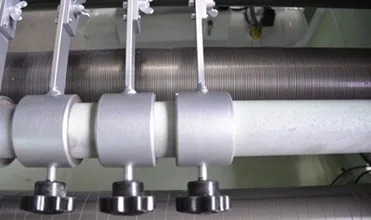

5.Flat Blade

Flat Blade To Slitting. And With Blade Shim Roller.(Shim can make slitting adjust more easily, make sure Min.slitting width can reach to 30mm)

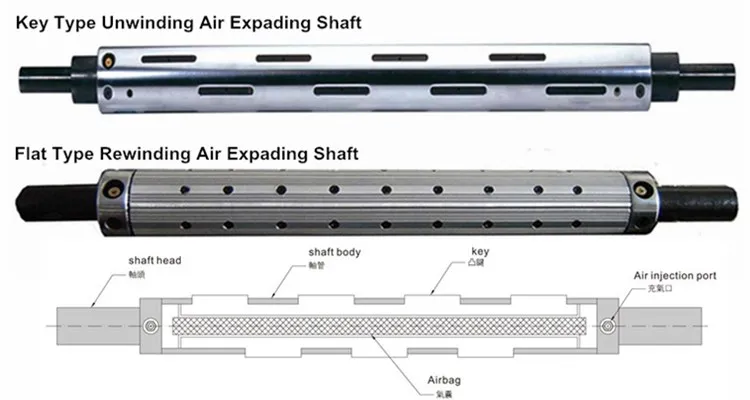

6.High Inner Density Key Type Unwinding & Rewinding Air Expanding Shaft.

Model
FQ-E1300
FQ-E1600
FQ-E2100
Max.Material Width
1300(mm)
1600(mm)
2100(mm)
Unwinding Diameter
800(mm)
800(mm)
800(mm)
Rewinding Diameter
550(mm)
550(mm)
550(mm)
Unwinding Magnetic Powder Brake
20Kgs*1Pcs
20Kgs*1Pcs
20Kgs*1Pcs
Slitting Width
30-1300mm
30-1600mm
30-2100mm
Machine Speed
320M/Min
320M/Min
320M/Min
Slitting&Rewinding Speed
(Depend on material specification)
0-300M/Min
0-300M/Min
0-300M/Min
Deviation correct accuracy
±0.2mm
±0.2mm
±0.2mm
Fan Power
0.75kw
0.75kw
0.75kw
Total Power
4.5kw
5.5kw
7.5kw
Net weight of machine
1800kgs
2100kgs
2800kgs
Machine Demension(mm)
2300x1700x1100mm
2700x1700x1100mm
3200x1700x1100mm
Packing & Delivery


If one set machine ,we will chose fumigation wooden case to do packing.Machine out side will cover with waterproof plastic film.


More than 1 set ,will load in 20'' feet container.

Our Certifications

CE Certificate


Our Service

Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

Our Workshop
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. We have engineer in Vietnam, Indonesia ,Malaysia&Philippines.
Q: How long is your delivery time?
A: Generally it is 30-40 days after getting deposit.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery.
