SBY-CB-1200 Automatic Flute E Pizza Box Printing Machine

FOB Reference Price:Get Latest Price
$10,800.00 - $15,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SBY-CB-1200
Gross Power:
6-7Kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Flexographic Printer
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Brand Name:
Berlan
Usage:
Corrugated Paperboard
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
220V/380V
Dimensions(L*W*H):
L6500xW1700xH1400mm
Weight:
2600-3000Kgs
Certification:
CE Certification
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Product name:
SBY-CB-1200 Automatic Flute E Pizza Box Printing Machine
Customization:
Accept
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Fumigation Wooden Case
2.Machine Will Cover With Water-Proof Film
3.Machine Surface & Gears Will Paint With Lubricating Oil & Anti-Rust Oil
Port
Ningbo,Shanghai,Guangzhou Etc.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description
PRODUCT NAME
SBY-CB-1200-Series Corrugated Paper Board Flexo Printing Machine
USAGE
Suit For Printing Corrugated Paper Box & Paper Board After Die Cutting And Without Die Cutting.
Feature&Parameter

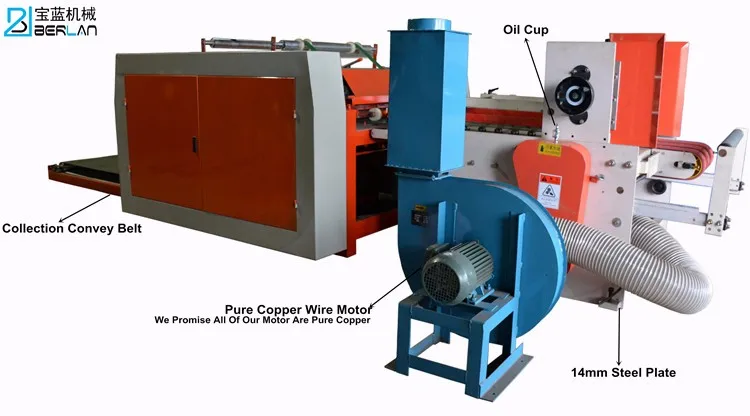

1.New Model Feeder

Compact structure ,Have many kinds of advantage from feeder counterparts.

Machine frame made of 14mm steel plate ,connect beam made of 12# iron and 10# square steel.

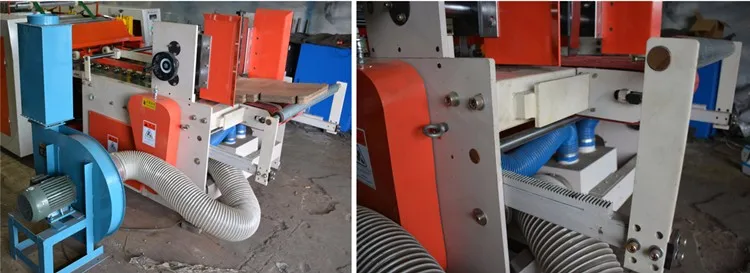

2.Adjustable Material Bracket &Centrigugal Blower

Suit for different size of paper board.Easy operating to adjust width and length

Feeder connect with centrifugal blower ,equiped with engraved roller ,increase friction with convey belt ,make sure paper board sending correctly.

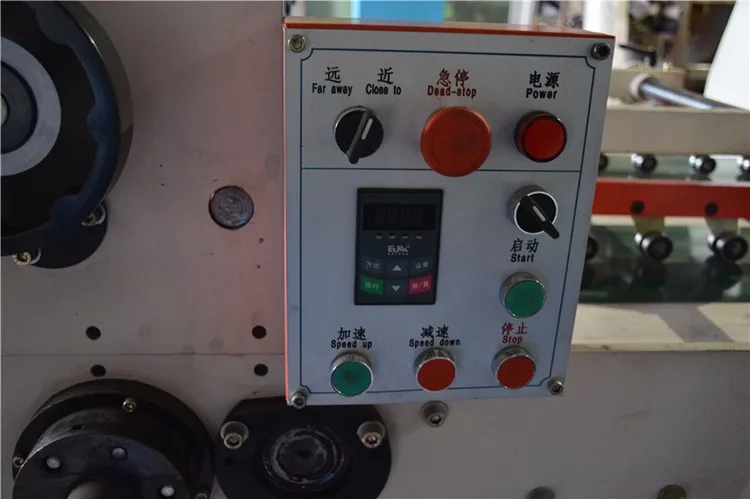

3.Feeder Operate Board

There is one frequency inverter in feeder part ,They connect PLC system& another one frequency inverter in printing part and control printing, make machine highly Synchronization ,work accurately ,fast and effective ,save more power.

4.Printing Part

Printing part machine frame made of 12mm thickness steel plate and 10# square steel.Stronger & Steady.

5.Printing Entrance

There is two electronic photocell eye in sending track and one in printing entrance(Total Three Pieces) ,when paperboard come ,they will command sending wheel to convey material to printing cylinder

6.Ink Circular System

Anilox Roller + Rubber Roller + Ink Circular Pump+Air Compressor,automatic circular ink,make ink always clean ,have a colorful printing effect.
220 Mesh anilox roller. it can transfer ink equably ,especially when you print 2mm size words on material. Anyway,It save Printing Ink.
Shore Hardness 90 Oilproof Rubber Roller,Oilproof character make it long service life.

7.Printing Cylinder

1CM thickness metal produce printing cylinder. And Cylinder surface through chrome plating ,make it smooth and good hardness.

8.Feeding Unit & Printing Unit Control System

Whole machine equipped with 2 frequency inveter.And this two inveter are synchronous control by PLC.

Feeding unit and printing unit all through frequency control by frequency inveter.

8.Back Side Emergency Stop Button , Jog Button

Model
SBY-CB-1200-2
SBY-CB-1200-3
SBY-CB-1200-4
Print Color
2Colors
3Colors
4Colors
Max.Entrance Width
1400(mm)
1400(mm)
1400(mm)
Max.Printing Width
1200(mm)
1200(mm)
1200(mm)
Min.Printing Width
270(mm)
270(mm)
270(mm)
Max.Printing Length
1000(mm)
1000(mm)
1000(mm)
Min.Printing Length
200(mm)
200(mm)
200(mm)
Print Speed
30-60pcs/min
30-60pcs/min
30-60pcs/min
Print Cylinder Dia(mm)
320(mm)
320(mm)
320(mm)
Printing Plate Thickness
2.24-5(mm)
2.24-5(mm)
2.24-5(mm)
Total Power
6KW
6KW
7KW
Machine Size(mm)
L5100×W1700×H1400
L5800×W1700×H1400
L6500×W1700×H1400
Machine Weight(Kgs)
2600Kgs
2800Kgs
3000Kgs
Our Workshop
Packing & Delivery

*The normal package is fumigated wooden box.

*Machine will cover with PE water proof film to prevent moisture from the ocean.

*Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
Our Certifications


CE Certificate

Our Service

Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*In
Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. We have engineer in Vietnam, Indonesia ,Malaysia&Philippines.

Q: How long is your delivery time?

A: Generally it is 30-40 days after getting deposit.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery.
