Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
SBY-A-500 Automatic Flexo Printing Machine For Paper Bag
10 Set/Sets per Month
Packaging & Delivery
1.Fumigation Wooden Case
2.Machine Will Cover With Water-Proof Film
3.Machine Surface & Gears Will Paint With Lubricating Oil & Anti-Rust Oil
1 - 1
To be negotiated

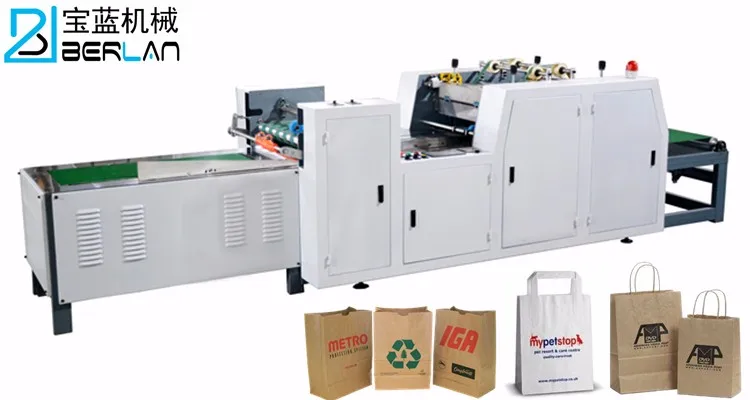

SBY-A-500 Automatic Feeding Single Sheet Paper Bag Printing Machine
This Machine Suit For Print Paper Bag With Handle Loop And Without Handle Loop.

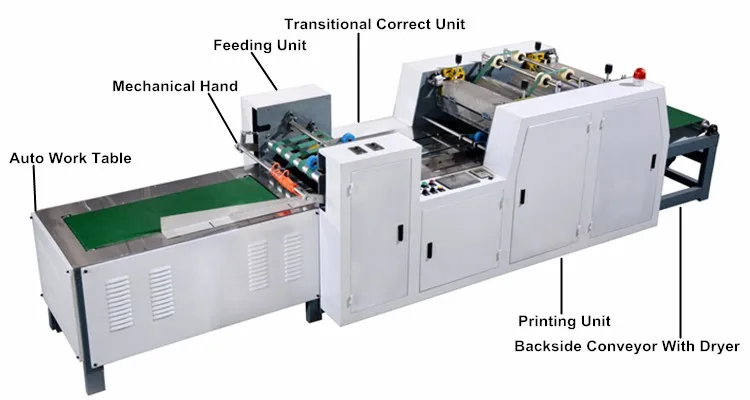

1.Machine Structure Material
Adopt 10mm Steel Plate To Make Machine Structure.Steel Plate Is Process By Laser Machine,Make Machine Structure High Precision. Highly Improve Printing Precision And Reduce Machine Noise.

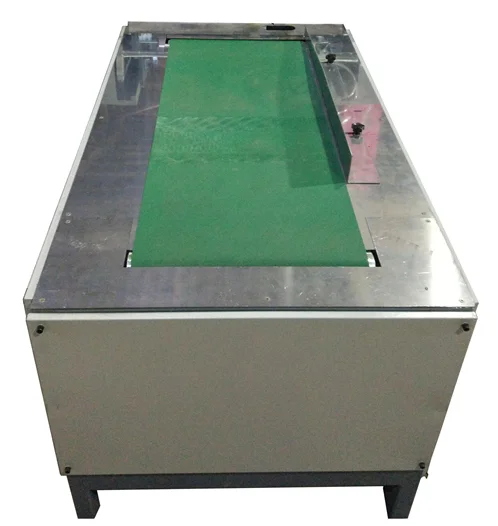

2.Full Auto Feeder Table. Can Loading 100cm Length Bag Stack
There have a photocell eye to detect bag, When bag move to downside of mechanical hand. Convey belt will stop ,then machine hand to do feeding. There have position location plate in side of work table ,can help fix bag well on convey belt.
3.Mechanical Hand To Do Feeding
Adopt mechanical hand to feed paper bag ,then send bag to transitional unit.

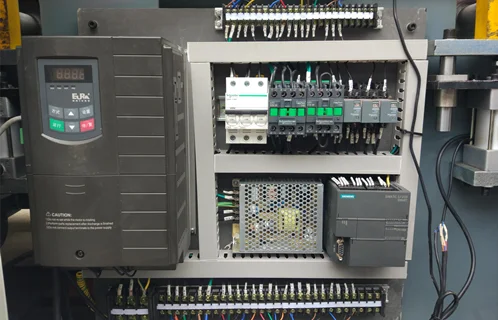

4.Whole Machine Is Synchronous Control By PLC System.
5.Transitional Correct Unit & Printing Entrance

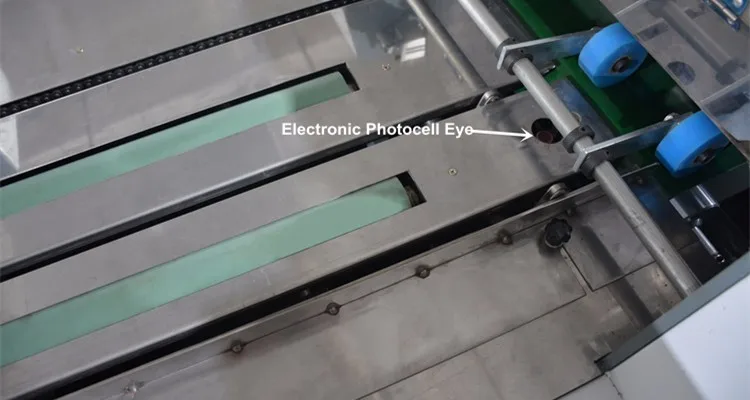

When bag be feed by mechanical hand and send to transitional part,sending claw will hold bag and move to printing entrance,Deviation correct roller will correct deviation and make bag in flat sending direction. There is a Electronic Photocell eye on entrance(New type photocell eye can check Black Color Bag.) ,when bag come ,it will send sign to printing cylinder to start printing.

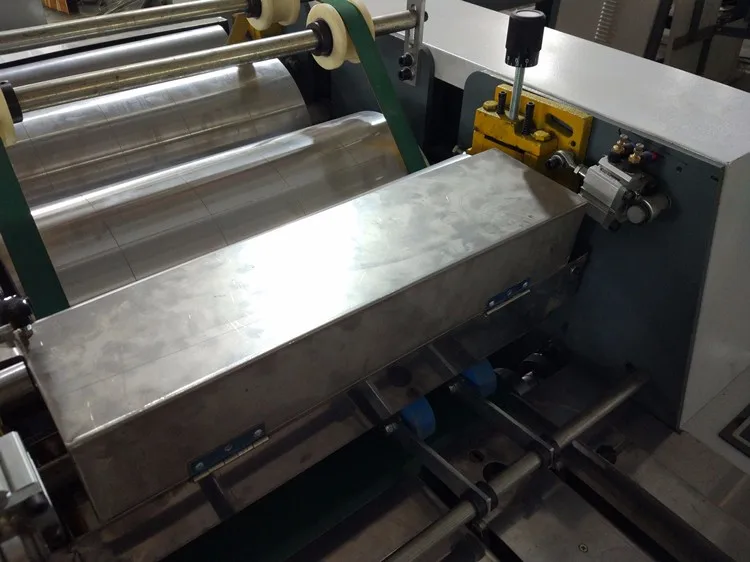

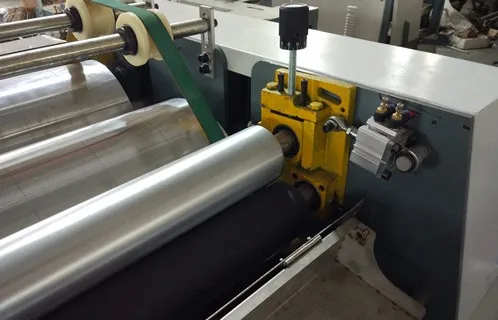

220 Mesh anilox roller. it can transfer ink equably ,especially when you print 2mm size words on material. Anyway,It save Printing Ink. Shore Hardness 90 Oilproof Rubber Roller,Oilproof character make it long service life.
7. 4CM Thickness Special Customize Gear.
Our gear is customize ,4cm thickness , make machine work much more steady , fast , with low noise, create a good environment for your worker.
Max.Effective Printing Width
Max.Effective Printing Length
Print Cylinder Diameter(mm)
Printing Plate Thickness
Packing & Delivery
*The normal package is fumigated wooden box.
*Machine will cover with PE water proof film to prevent moisture from the ocean.
*Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
* 1 year warranty * Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one. * If beyond warranty,we offer free repair service,Clients need undertake ship cost
After-Sales Service * Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. *In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.
Q: Are you trading company or manufacturer ?
A: We are factory. We have engineer in Vietnam, Indonesia ,Malaysia&Philippines.
Q: How long is your delivery time?
A: Generally it is 30-40 days after getting deposit.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery.
